Page 115 - EMEK 2020
P. 115
gold serisi / series

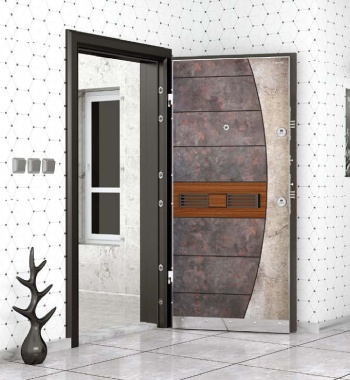

G-004
• Kapı ölçülerimiz; Boy: 200 cm, En: 90 cm,
• Kasa: 18 - 24 cm (ayarlanabilir)
• Kapı kasaları 1,5 mm CCR-6112 Ereğli A-1 DKP sac, lastik conta, kilit karşılık yerleri
sac içerisine gömme şekilde imal edilecek.
• Kapı kanatları 1,2 mm CCR-6112 Ereğli A-1 DKP sac, kanat içi komple sac
panel olup 5 adet 10 cm kuşaklarla takviyelidir. Seren kalınlığı 7,5 cm’dir.
• Kapı ahşapları (Kaplama cinsi isteğe bağlı Alpi Kaplama, Laminant
Kaplama, Granit, PVC Kaplama, Ultralam Ahşap, Ceviz Rustik Kaplama
vs çeşitlendirilebilir.)
• Kanat içi 40 x 40 danste kalınlığında taş yünü ile doludur.
• Kasa ve kanatlarımız komple 200 - 220 0 C konveryli sprey ve
yıkama hatlı statik boya tesisinde boyanmaktadır.
• Kapı kilitlerimiz monoblok kilit sistemi kullanılmaktadır. (Kilit
sistemlerimiz opsiyoneldir.)
• Gold seri kapının paketlenmiş net ağırlığı 105 - 115 kg’dır.
• Door dimensions are width 90 cm, height 200 cm adjustable frame
18-24 cm.
• Door frames 1,5 mm CCR-6112 Ereğli A-1 DKP sheet, rubber joint. We
produce lock opposite places as embedded into sheet metal.
• Door leafs 1,5 mm CCR-6112 Ereğli A-1 DKP sheet. There are a whole sheet
and 5 pieces metal belt inside the wings. Edge of wings sizes 10 cm-box
frames, sprit thickness is 7,5 cm.
• We produce wooden parts of door natural walnut veneer or you can choose
one of other beneer types as Alphi, Laminate or Walnut Rustic etc.
• We always full fill rock wool 40x40 inside wings that provides insulating voice
and heat .
• All of our frames and wings are electrostatic powder coated. 200 - 220 0 C
convery static paint plant with spraying and washing line.
• Our colors are poliester statics and also have 5 years guarantee. We will prefer
suitable color to wingcolor.
• Our lock suystem Monobloc lock performed. (We have a lot of lock system choises.)
• Hinge sides are powered by 6 steel security pins. Chrome bowl is used to opposite of
pins.
• Door accesories are all brass. You can choose satin or yellow color. We provide
differrent accessories types or colors if it suits door style.
• There are a door viewer that has 180 degree point of view with big glass lens on each
door wings and secret security manacle each door standart.
• We use 3 pcs ball-hinges 20 cm special production can lubricate in our each doors.
• Rubber stickings are used around the leaf of door.
• Backside style of leaf is applied simple & plain. It is optional on your request.
• A packed gold serie door 105 - 115 kg weight.
Sidney Opera Binası 116 | 117 DAYANIKLI DAYANIKLI ÇEVRE
DARBEYE
DOSTU
ÖN ZIRH
Avustralya‘nın Sidney kentinde, Sidney liman köprüsüne yakın, Bennelong noktasında kurulu, gala, sanat ve gösteri
binası. 1957’de Sydney’e bir opera binası yapmak için düzenlenen yarışmayı kazanan Danimarkalı mimar Joern Utzon
tarafından yapılan binanın tasarımında mimar, kuşların kanatları, bulutların şekli ve formları, deniz kabukları, ceviz ve
palmiye ağaçları, yatların yelkenleri ile kısmen de Meksika’daki Maya ve Aztek tapınaklarından ilham aldı.
2007’de UNESCO Dünya Kültür Mirasları Listesi’ne eklenen Sidney Opera Binası’nda her yıl 3.000 gösteri, yılda 2
milyon izleyiciye ulaşıyor.
Sydney Opera House
A gala, art and show building in Sydney, Australia, close to the Sydney harbor bridge, at Bennelong Point. In 1957, the Danish
architect Joern Utzon, who won the competition to build an opera house in Sydney, designed the building with the inspiration
from the wings of birds, the shape and forms of the clouds, seashells, walnut and palm trees, sails of yachts and, in part, the Maya
and Aztec temples.
In the Sydney Opera House, which was added to the UNESCO World Cultural Heritage List in 2007, 3,000 performances reach 2
million viewers a year.
114 - 115 / www.emekdoor.com
